Gizmo PicoTrac Series

200lm, CRI 95, lens N, dimmer
Color temperature (K)
Housing Colors
Control
Please select variant!

Gizmo

Gizmo is designed to discreetly illuminate objects in museum cabinets and alike. A mini-LED spotlight with the best possible color reproduction. Optics (lenses) can be interchanged without tools.
With its simple yet stylish design, Gizmo has been a proud servant in museums all over Scandinavia for nearly 10 years. It has undergone all necessary changes to keep the product up to date. Gizmo is considered as the first choice for lighting in display cases and alike.
Built-in dimmer 0–100% (Pico Trac)

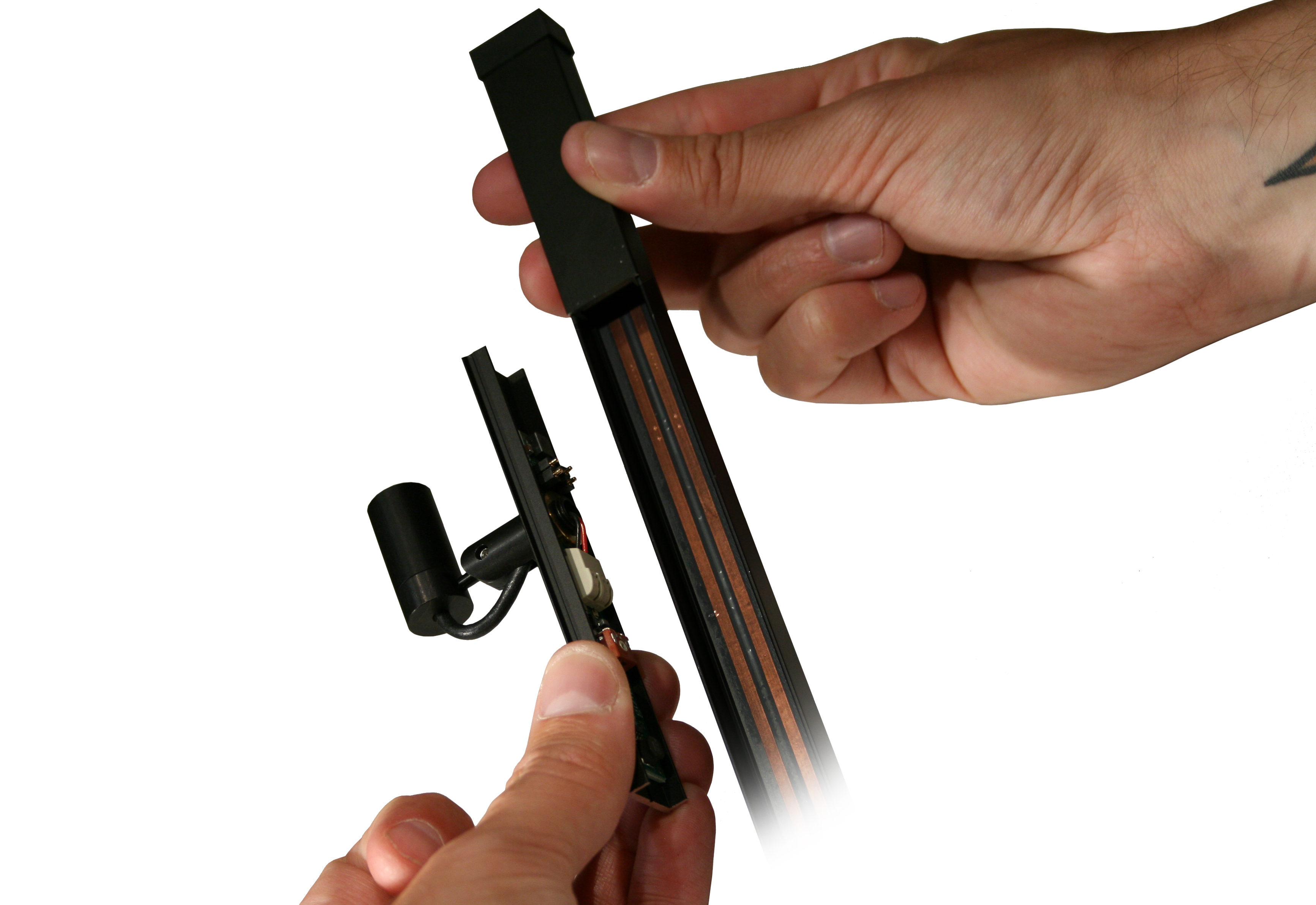

Gizmo is delivered with adapter for Pico Trac or LED-profile or as solo mounting.

Technical Specifications

Technical Specifications

Material


  •     Lamp housing made of aluminum,
  •     Yoke and details made of steel
  •     Lens made of polycarbonate

Finish

  •     Grey (RAL 7040)
  •     Black (RAL 9005)
  •     White (RAL 9016)
  •     Brass

System

  •     Pico Trac
  •     LED Profile
  • Protection class  IP20
  • Power consumption 2,1W/3W
  • Beam angle Interchangeable lenses
  • Color temperatures 2200K, 2700K, 3000K, 4000K, 5700K
  • Swivels  >365°
  • Tilts  >90°
  • Weight 50 g
  • Features Toolless pan, Tilt lock
  • Optional accessories Snoot, Magnet, Ceiling cup

LIGHT DATA


  • LED lumen 210 lm
  • Luminaire lumen 159 lm (Narrow)
  • CRI 95
  • Red component R9  >80
  • MacAdam 3-step ellipse (SDCM 3)
  • TM30–18 Rf  95
  • TM30–18 Rg  104

* Data from 3000K


Supplier SKU
GIZ27B-PICO-2
/Files/Images/brand-logos/LD-stående-2016.png
Ljusdesign

Ljusdesign is designed and developed in Sweden and is one of the few brands that produce the products themselves. This makes the products more sustainable because we can send them to Sweden when they need to be repaired rather than throwing them out and buying new ones. It also means a lot of flexibility because we can quickly modify a product when it is being produced close by.

For more than 30 years, Ljusdesign has provided high-quality display lighting for exhibition purposes. They have taken the qualities of theater spots and made miniature editions that make them optimal for enhancing storytelling at exhibitions.
